JA 470W MBB Half-Cell Module JAM72S20 445-470/MRM

Short Description:

Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Higher output power

Lower LCOE

Less shading and lower resistive loss

Better mechanical loading tolerance

Send email to us

Product Detail

Product Tags

product-description1

Remark: customized frame color and cable length available upon request

SPECIFICATIONS

Cell	Mono
Weight	24.5kg±3%

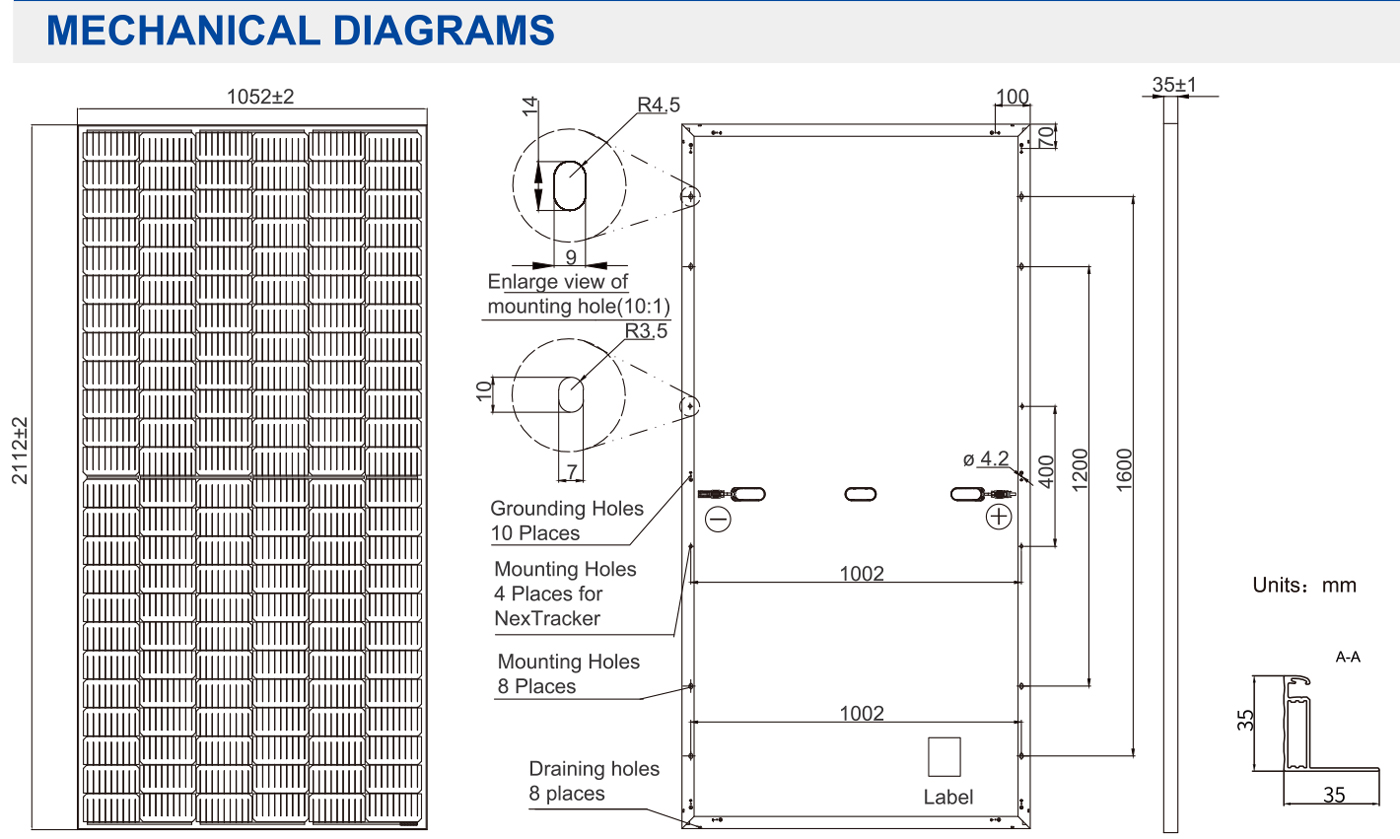

Dimensions	2112±2mmx1052±2mm*35±1 mm
Cable Cross Section Size 4mm² (IEC) , 12AWG(UL)
No. of cells	144 (6x24)
Junction Box	IP68, 3 diodes
Connector	QC4.10(1000V) QC 4.10-35(1500V)
Cable Length (Including Connector)	Portrait: 300mm(+)/400mm(-); Landscape: 1200mm(+)/1200mm(-)
Packaging Configuration ₆82p^MOTContain_er

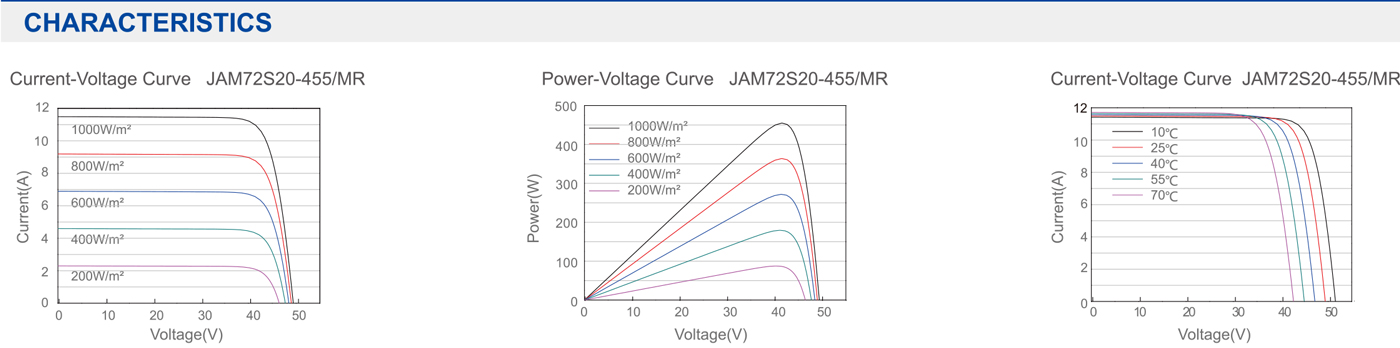

ELECTRICAL PARAMETERS AT STC

TYPE	JAM72S20 ■445/MR	JAM72S20 ■450/MR	JAM72S20 ■455/MR	JAM72S20 -460/MR	JAM72S20 -465/MR	JAM72S20 -470/MR
Rated Maximum Power(Pmax) [W]	445	450	455	460	465	470
Open Circuit Voltage(Voc) [V]	49.56	49.70	49.85	50.01	50.15	50.31
Maximum Power Voltage(Vmp) [V]	41.21	41.52	41.82	42.13	42.43	42.69
Short Circuit Current(lsc) [A]	11.32	11.36	11.41	11.45	11.49	11.53
Maximum Power Current(lmp) [A]	10.80	10.84	10.88	10.92	10.96	11.01
Module Efficiency [%]	20.0	20.3	20.5	20.7	20.9	21.2
Power Tolerance			0-+5W
Temperature Coefficient of Isc(ajsc)			+0.044%/°C
Temperature Coeificient of Vbc(3_Voc)			-0.272%/°C
Temperature Coefficient of Pmax(v_Pmp)			-0.350%/C

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

ELECTRICAL PARAMETERS AT NOCT						OPERATING CONDITIONS
TYPE	JAM72S20 -445/MR	JAM72S20 -450/MR	JAM72S20 -455/MR	JAM72S20 JAM72S20 ■460/MR -465/MR	JAM72S20 -470/MR	Maximum System Voltage	1000V/1500V DC
Rated Max Power(Pmax) [W]	336	340	344	348 352	355	Operating Temperature	-40C-+85C
Open Circuit Voltage(Voc) [V]	46.65	46.90	47.15	47.38 47.61	47.84	Maximum Series Fuse Rating	20A
Max Power Voltage(Vmp) [V]	38.95	39.19	39.44	39.68 39.90	40.10	Maximum Static Load,Front* Maximum Static Load,Back*	5400Pa(112 lb/ft²) 2400Pa(50 lb/ft²)
Short Circuit Current(lsc) [A]	9.20	9.25	9.29	9.33 9.38	9.42	NOCT	45±2C
Max Power Current(lmp) [A]	8.64	8.68	8.72	8.76 8.81	8.86	Safety Class	Class II
NOCT	Irradiance 800W/m², ambient temperature 20°C,wind speed 1m/s, AM1.5G					Fire Performance	UL Type 1
*For NexTracker installations .Maximum Static Load, Front is 1800Pa while Maximum Static Load, Back is 1800Pa.
