JA MBB Half-cell Module JAM78S30 580-605/MR
Remark: customized frame color and cable length available upon request
SPECIFICATIONS
| Cell |
Mono |
| Weight | 31.1 kg±3% |

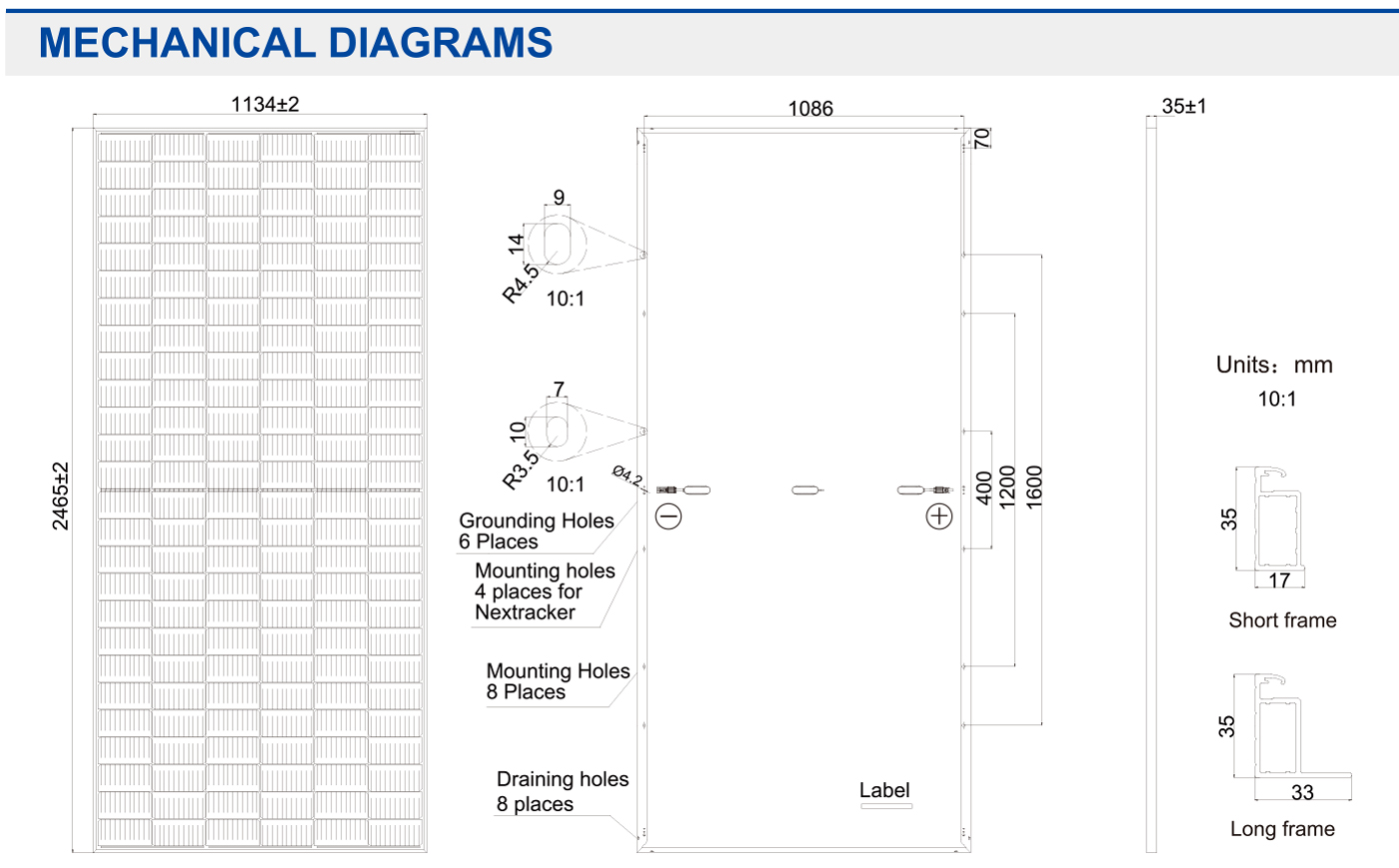

| Dimensions |
2465±2mmxll 34±2mm*35±1 mm |
| Cable Cross Section Size | 4mm2 (IEC) , 12AWG(UL) |
| No. of cells |
156(6x26) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10(1000V)
QC 4.10-35(1500V) |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);
Landscape: 1500mm(+)/1500mm(-) |
| Packaging Configuration | 31pcs/Pallet
496pcs/40HQ Container |

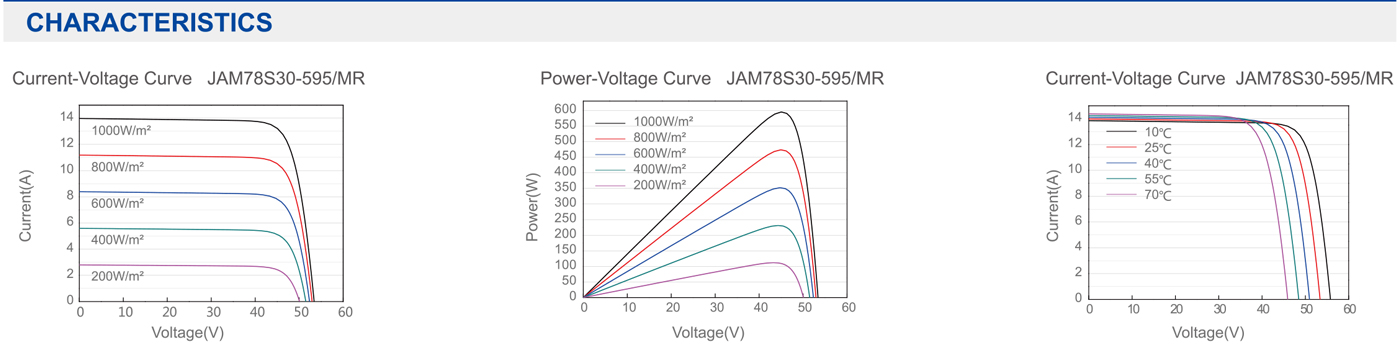

ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM78S30 -580/MR |
JAM78S30 -585/MR |
JAM78S30 -590/MR |
JAM78S30 -595/MR |
JAM78S30 -600/MR |
JAM78S30 -605/MR |
| Rated Maximum Power(Pmax) [W] |
580 |
585 |
590 |
595 |
600 |
605 |
| Open Circuit Voltage(Voc) [V] |
53.11 |
53.20 |
53.30 |
53.40 |
53.50 |
53.61 |
| Maximum Power Voltage(Vmp) [V] |
44.35 |
44.56 |
44.80 |
45.05 |
45.30 |
45.53 |
| Short Circuit Current(lsc) [A] |
13.84 |
13.88 |
13.93 |
13.98 |
14.03 |
14.08 |
| Maximum Power Current(lmp) [A] |
13.08 |
13.13 |
13.17 |
13.21 |
13.25 |
13.29 |
| Module Efficiency [%] |
20.7 |
20.9 |
21.1 |
21.3 |
21.5 |
21.6 |
| Power Tolerance |
0~+5W |
|||||
| Temperature Coefficient of Isc(ajsc) |
+0.045%°C |
|||||
| Temperature Coeificient of Vbc(3_Voc) |
-0.275%/°C |
|||||
| Temperature Coefficient of Pmax(v_Pmp) |
-0.350%/°C |

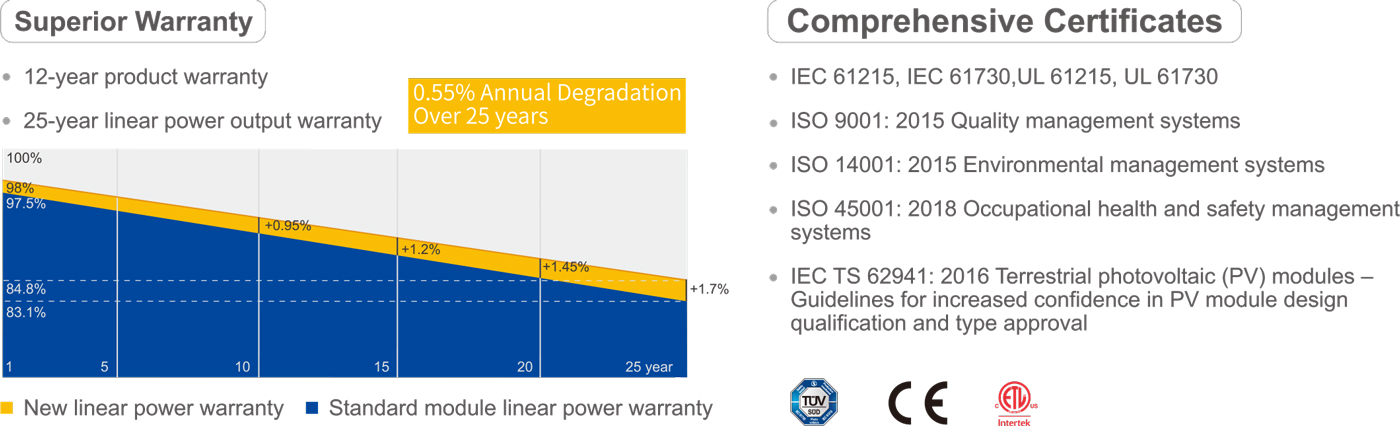

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
|||||||
| TYPE |
JAM78S30 -580/MR |
JAM78S30 -585/MR |
JAM78S30 -590/MR |
JAM78S30 -595/MR |
JAM78S30 -600/MR |
JAM78S30 -605/MR |
Maximum System Voltage | 1000V/1500V DC |
| Rated Max Power(Pmax) [W] |
438 |
442 |
446 |
450 |
454 |
458 |
Operating Temperature | -40C-+85C |
| Open Circuit Voltage(Voc) [V] | 50.45 | 50.59 | 50.72 | 50.86 | 51.01 | 51.17 | Maximum Series Fuse Rating | 25A |
| Max Power Voltage(Vmp) [V] | 42.55 | 42.69 | 42.82 | 42.94 |
43.07 |
43.21 | Maximum Static Load,Front* Maximum Static Load,Back* | 5400Pa(112lb/ft2)
2400Pa(50lb/ft2) |
| Short Circuit Current(lsc) [A] | 11.02 | 11.07 | 11.13 | 11.19 |
11.25 |
11.30 | NOCT | 45±2C |
| Max Power Current(lmp) [A] | 10.30 | 10.36 | 10.42 | 10.48 |
10.54 |
10.60 | Safety Class | Class II |
| NOCT | Irradiance 800W/m2, ambient temperature 20°C,wind speed 1m/s, AM1.5G | Fire Performance | UL Type 1 | |||||
| *The mounting installation by 400mm spaced holes is not applicable for JAM78S30 MR. | ||||||||
