JA 390W MBB Half-Cell Module JAM60S20 365-390/MR
Remark: customized frame color and cable length available upon request

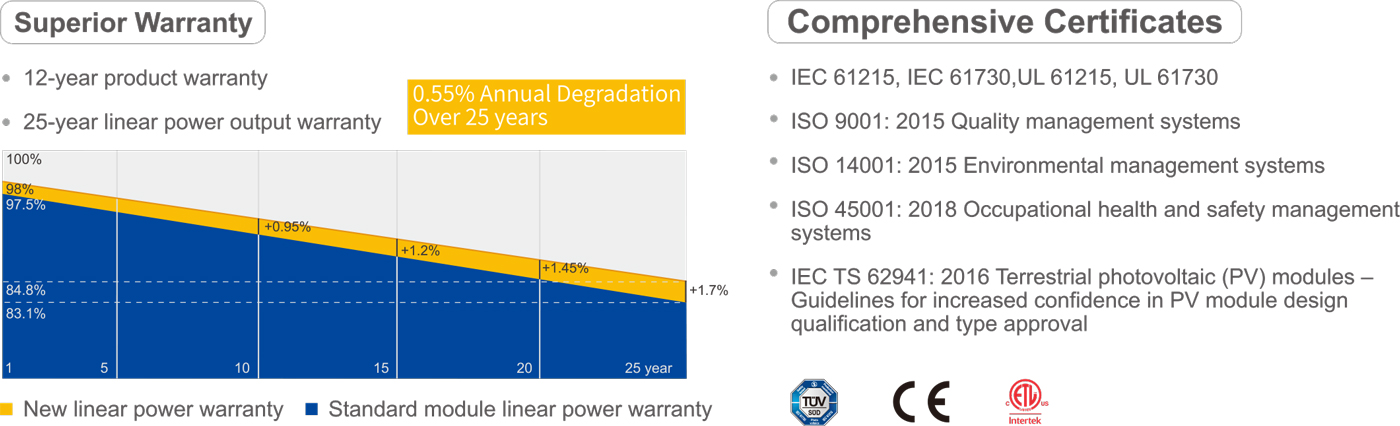

SPECIFICATIONS
| Cell | Mono |
| Weight | 20.2kg±3% |

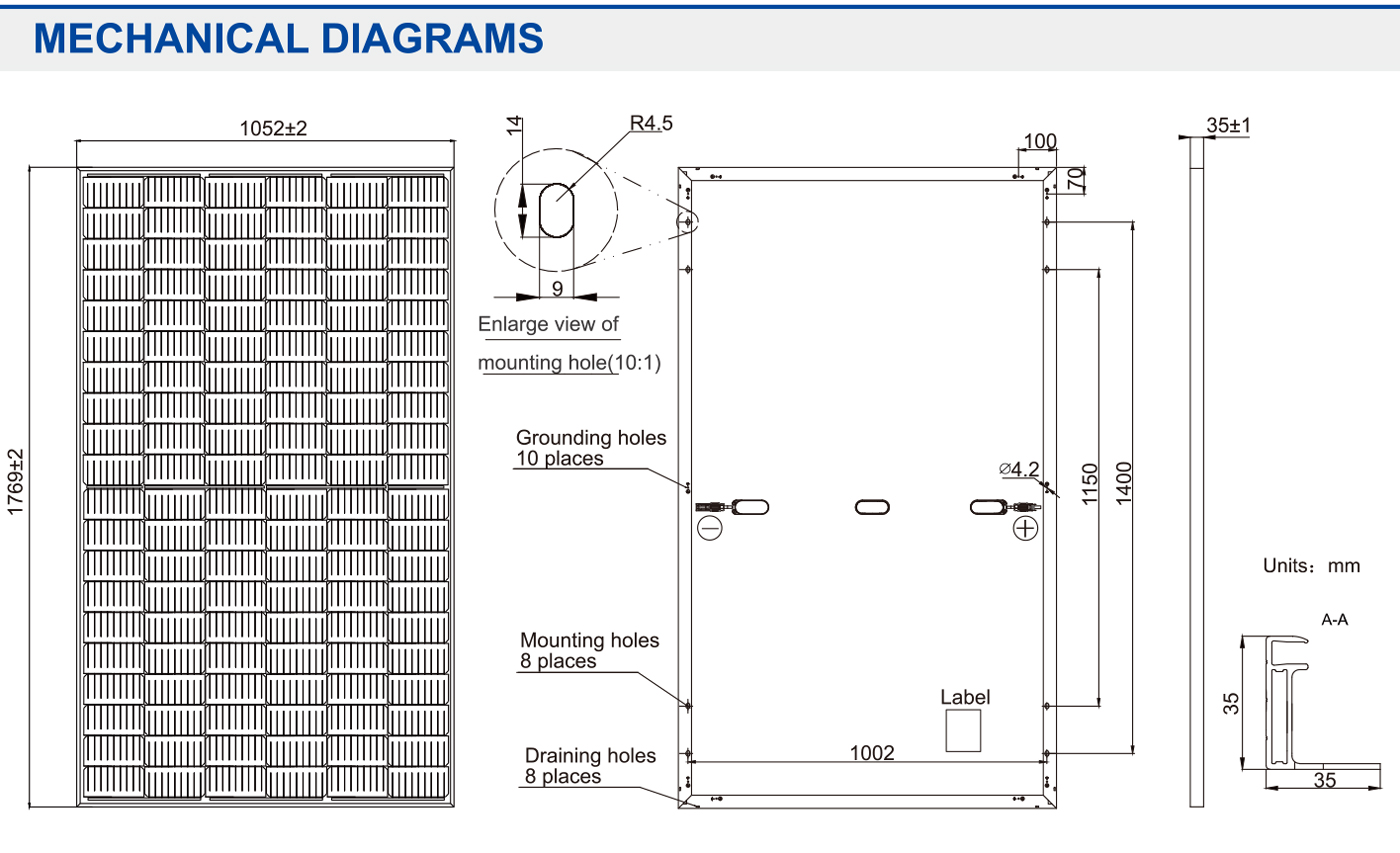

| Dimensions 1 | 769±2mmxl 052±2mmx35±1 mm |
| Cable Cross Section Size | 4mm2 (IEC) ,12AWG(UL) |
| No. of cells | 120(6x20) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10(1000V)
QC 4.10-35(1500V) |
| Cable Length Portrait:300mm(+)/400mm(-);
(Including Connector) Landscape: 1000mm(+)/1 OOOmm(-) |
|
| Packaging Configuration |
31pcs/Pallet 806pcs/40ft Container |

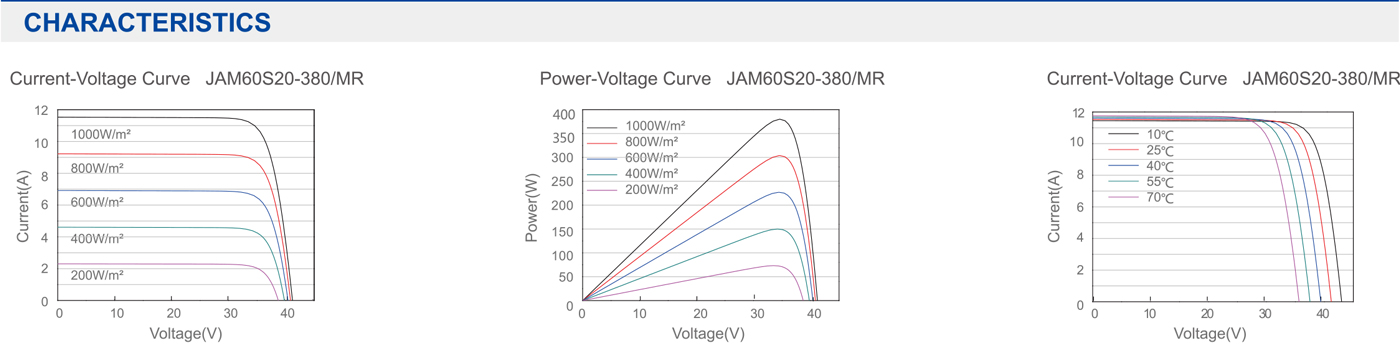

ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM60S20 -365/M R |
JAM60S20 -370/M R |
JAM60S20 -375/MR |
JAM60S20 -380/M R |
JAM60S20 -385/M R |
JAM60S20 -390/MR |
| Rated Maximum Power(Pmax) [W] | 365 |
370 |
375 |
380 |
385 |
390 |
| Open Circuit Voltage(Voc) [V] | 41.13 |
41.30 |
41.45 | 41.62 | 41.78 | 41.94 |
| Maximum Power Voltage(Vmp) [V] | 33.96 |
34.23 |
34.50 | 34.77 | 35.04 | 35.33 |
| Short Circuit Current(lsc) [A] | 11.30 |
11.35 |
11.41 |
11.47 |
11.53 | 11.58 |
| Maximum Power Current(lmp) [A] | 10.75 |
10.81 |
10.87 | 10.93 | 10.99 | 11.04 |
| Module Efficiency [%] | 19.6 |
19.9 |
20.2 |
20.4 |
20.7 |
21.0 |
| Power Tolerance |
0-+5W |
|||||
| Temperature Coefficient of Isc(ajsc) | +0.044%/°C | |||||
| Temperature Coefficient of Vbc(0_Voc) | -0.272%/°C | |||||
| Temperature Coefficient of Pmax(v_Pmp) | -0.350%/°C |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
|||||||
| TYPE |
JAM60S20 -365/M R |
JAM60S20 -370/MR |
JAM60S20 -375/MR |
JAM60S20 -380/M R |
JAM60S20 -385/MR |
JAM60S20 -390/MR |
Maximum System Voltage | 1000V/1500V DC |
| Rated Max Power(Pmax) [W] | 276 | 280 | 284 | 287 |
291 |
295 | Operating Temperature | -40°C~+85°C |
| Open Circuit Voltage(Voc) [V] |
38.41 |
38.65 |
38.89 |
39.14 |
39.38 |
39.63 | Maximum Series Fuse Rating | 20A |
| Max Power Voltage(Vmp) [V] | 32.05 |
32.30 |
32.55 |
32.72 |
32.96 |
33.20 | Maximum Static Load,Front | 5400Pa (112lb/ft2) |
| Short Circuit Current(lsc) [A] | 9.15 | 9.20 | 9.25 | 9.30 |
9.35 |
9.40 | Maximum Static Load,Back | 2400Pa (50 lb/ft2) |
| Max Power Current(lmp) [A] |
8.61 |
8.66 | 8.71 | 8.78 |
8.83 |
8.88 | NOCT | 45±2°C |
| NOCT |
Irradiance 800W/m2, ambient temperature 20°C, wind speed 1m/s, AM1.5G |
Safety Class
Fire Performance |
Class H
UL Type 1 |
|||||
