JA I5W1VIBB Bifacial Mono PERC Half-cell Double Glass Module JAM78D30 580-605/MB
Remark: customized frame color and cable length available upon request

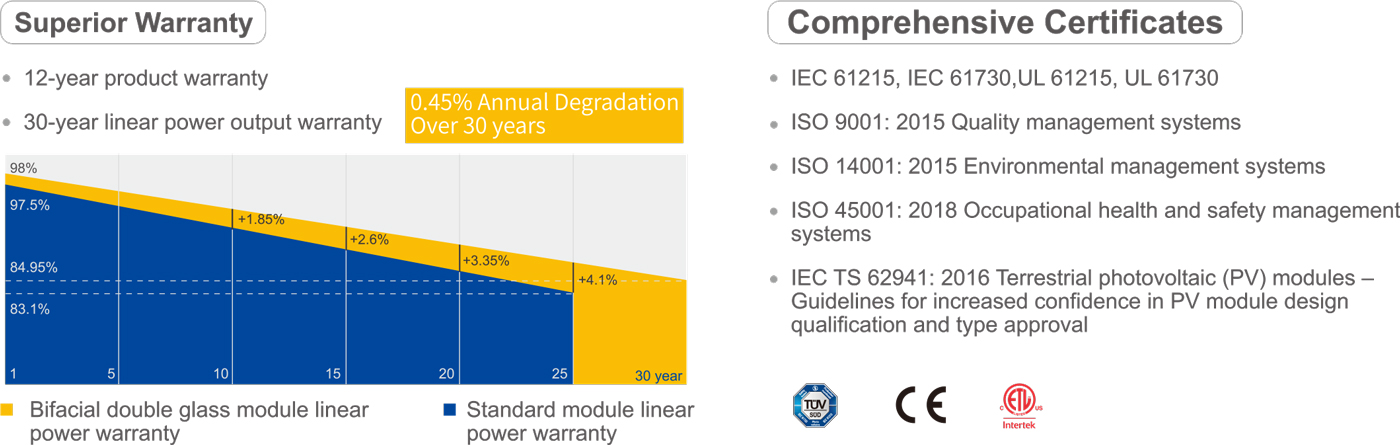

SPECIFICATIONS
| Cell |
Mono |
| Weight | 33.4kg±3% |

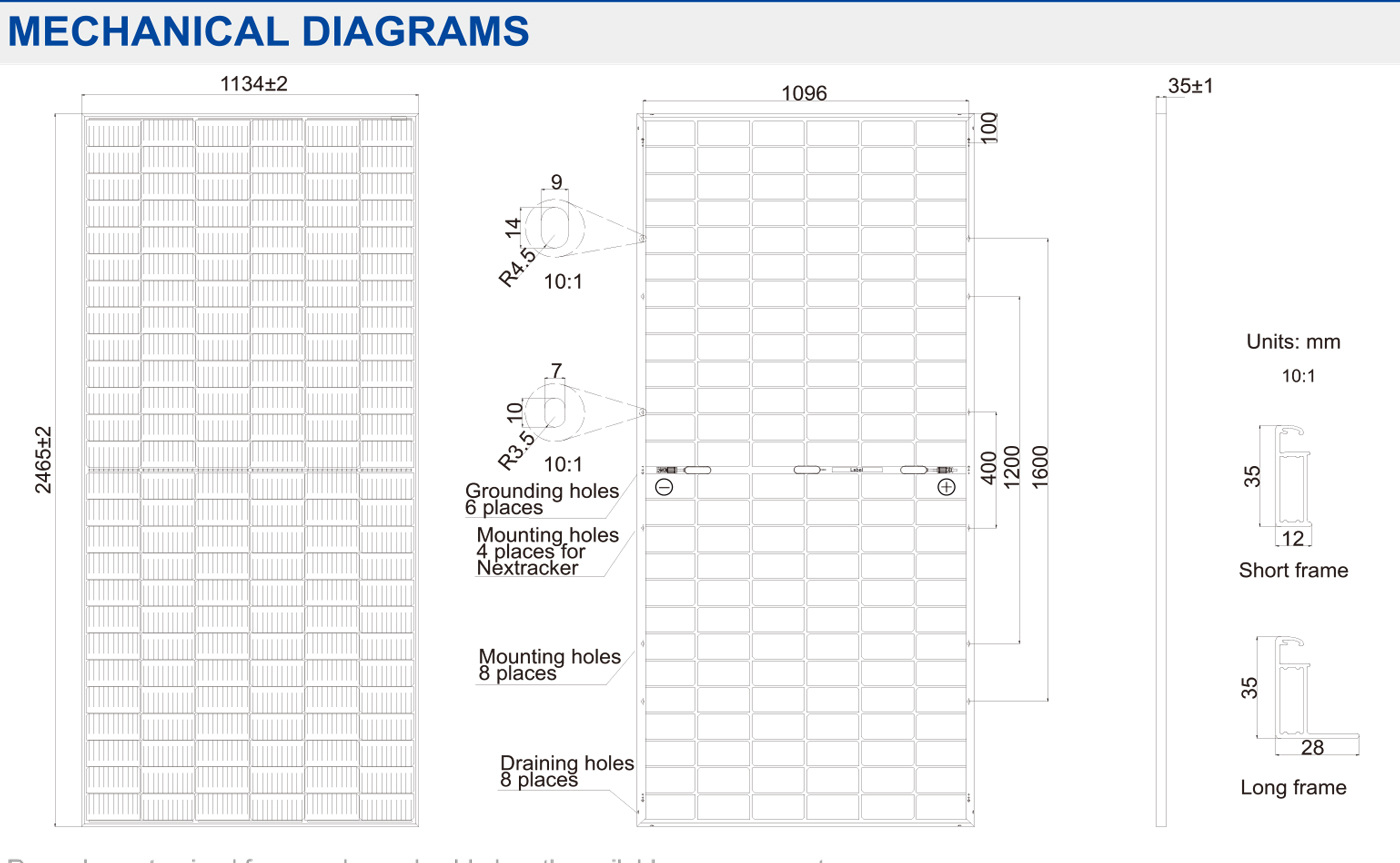

| Dimensions |
2465±2mmxll 34±2mmx35±1 mm |
| Cable Cross Section Size | 4mm2 (IEC), 12AWG(UL) |
| No. of cells |
156(6x26) |
| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-35 |
| Cable Length
(Including Connector) |
Portrait:300mm(+)/400mm(-);
Landscape:! 500m m(+)/1500m m(-) |
| Front Glass/Back Glass | 2.0mm/2.0mm |
| Packaging Configuration |
31pcs/Pallet, 496pcs/40HQ Container |

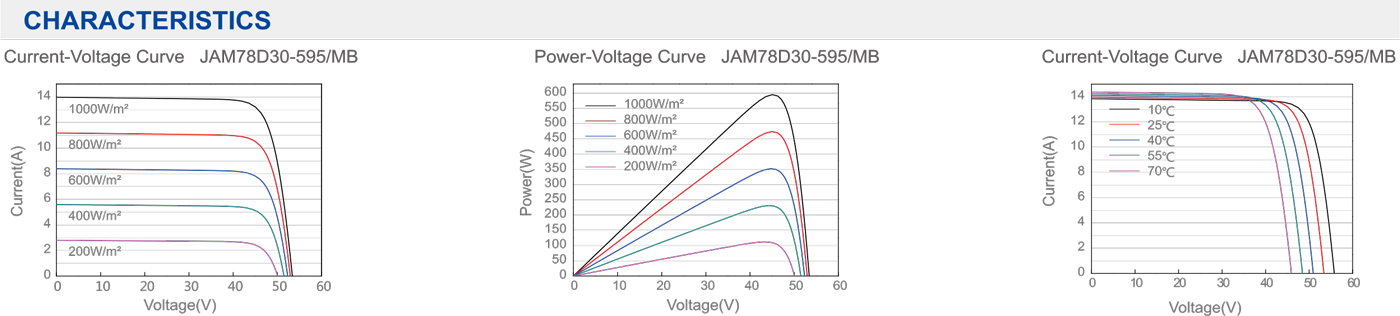

ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM78D30 -580/MB |
JAM78D30 -585/MB |
JAM78D30 -590/MB |
JAM78D30 -595/MB |
JAM78D30 -600/MB |
JAM78D30 -605/MB |
| Rated Maximum Power(Pmax) [W] | 580 |
585 |
590 |
595 |
600 |
605 |
| Open Circuit Voltage(Voc) [V] | 53.11 |
53.20 |
53.30 |
53.40 |
53.50 |
53.61 |
| Maximum Power Voltage(Vmp) [V] | 44.35 |
44.56 |
44.80 |
45.05 |
45.30 |
45.53 |
| Short Circuit Current(lsc) [A] | 13.84 |
13.88 |
13.93 |
13.98 |
14.03 |
14.08 |
| Maximum Power Current(lmp) [A] | 13.08 |
13.13 |
13.17 |
13.21 |
13.25 |
13.29 |
| Module Efficiency [%] | 20.7 |
20.9 |
21.1 |
21.3 |
21.5 |
21.6 |
| Power Tolerance | 0-+5W | |||||
| Temperature Coefficient of Isc(ajsc) | +0.045%/°C | |||||
| Temperature Coefficient of Vbc(0_Voc) | -0.275%/°C | |||||
| Temperature Coefficient of Pmax(v_Pmp) | -0.350%/°C |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
| TYPE |
JAM78D30 -580/MB |
JAM78D30 -585/MB |
JAM78D30 -590/MB |
JAM78D30 -595/MB |
JAM78D30 -600/MB |
JAM78D30 -605/MB |
Maximum System Voltage | 1500V DC |
| Rated Max Power(Pmax) [W] |
621 |
626 |
631 |
637 |
642 | 647 | Operating Temperature | -40°C~+85°C |
| Open Circuit Voltage(Voc) [V] | 53.16 | 53.25 | 53.35 | 53.45 | 53.55 | 53.66 | Maximum Series Fuse Rating | 30A |
| Max Power Voltage(Vmp) [V] | 44.34 | 44.55 | 44.80 | 45.04 | 45.28 | 45.52 | Maximum Static Load,Front* Maximum Static Load,Back* | 5400Pa(112lb/ft2)2400Pa(50 lb/ft2) |
| Short Circuit Current(lsc) [A] | 14.81 | 14.85 | 14.91 | 14.96 | 15.01 | 15.07 | NOCT | 45±2°C |
| Max Power Current(lmp) [A] | 14.00 | 14.05 | 14.09 | 14.13 | 14.18 | 14.22 | Bifaciality** | 70%±10% |
| Irradiation Ratio(rear/front) |
10% |
Fire Performance | UL Type 29 | |||||
| *For NexTracker installations, Maxi mum Static Load,Front is 1800Pa while Maximum Static Load, Back is 1800Pa. | ||||||||
| **Bifaciality=Pmax,rear/Rated Pmax.front | ||||||||
