JA 555W MBB Half-cell Module JAM72S30 530・555/MR
Remark: customized frame color and cable length available upon request

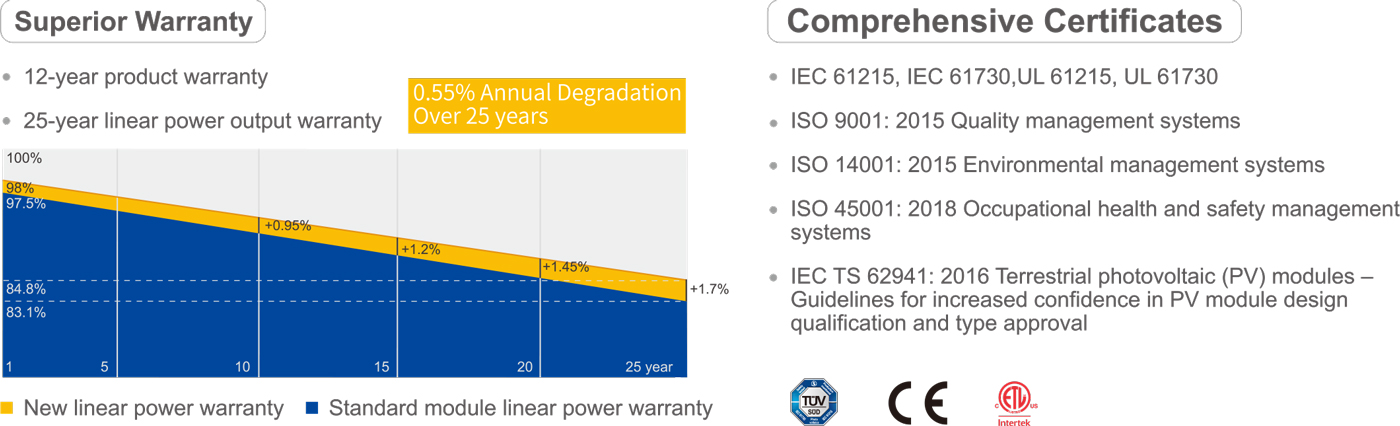

SPECIFICATIONS
| Cell | Mono |
| Weight | 28.1 kg±3% |

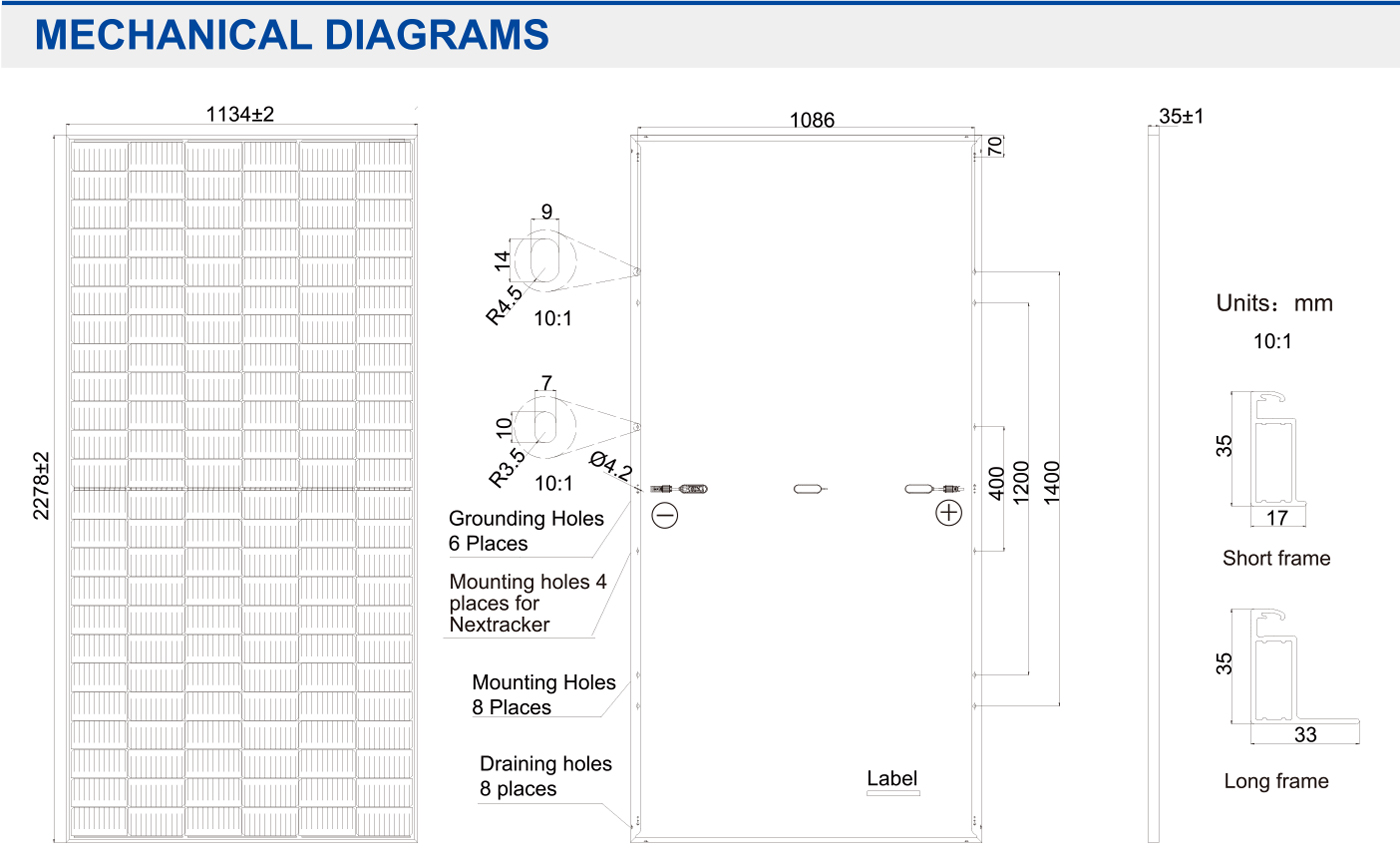

| Dimensions | 2278±2mmxll 34±2mm*35±1 mm |
| Cable Cross Section Size | 4mm2 (IEC) , 12AWG(UL) |
| No. of cells | 144(6x24) |
| Junction Box | IP68, 3 diodes |
| Connector | QC4.10(1000V)
QC 4.10-35(1500V) |
| Cable Length (Including Connector) | Portrait: 300mm(+)/400mm(-);
Landscape: 1300mm(+)/1300mm(-) |
| Packaging Configuration | 31pcs/Pallet
620pcs/40HQ Container |
ELECTRICAL PARAMETERS AT STC
| TYPE |
JAM72S30 -530/MR |
JAM72S30 -535/M R |
JAM72S30 -540/MR |
JAM72S30 -545/MR |
JAM72S30 -550/MR |
JAM72S30 -555/MR |
| Rated Maximum Power(Pmax) [W] |
530 |
535 |
540 |
545 |
550 | 555 |
| Open Circuit Voltage(Voc) [V] |
49.30 |
49.45 |
49.60 | 49.75 | 49.90 | 50.02 |
| Maximum Power Voltage(Vmp) [V] |
41.31 |
41.47 |
41.64 | 41.80 | 41.96 | 42.11 |
| Short Circuit Current(lsc) [A] |
13.72 |
13.79 |
13.86 | 13.93 | 14.00 | 14.07 |
| Maximum Power Current(lmp) [A] |
12.83 |
12.90 |
12.97 | 13.04 | 13.11 | 13.18 |
| Module Efficiency [%] |
20.5 |
20.7 |
20.9 |
21.1 |
21.3 | 21.5 |
| Power Tolerance |
0~+5W |
|||||
| Temperature Coefficient of Isc(ajsc) | +0.045%/°C | |||||
| Temperature Coeificient of Vbc(3_Voc) | -0.275%/°C | |||||
| Temperature Coefficient of Pmax(v_Pmp) |
-0.350%/°C |
|||||
| STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

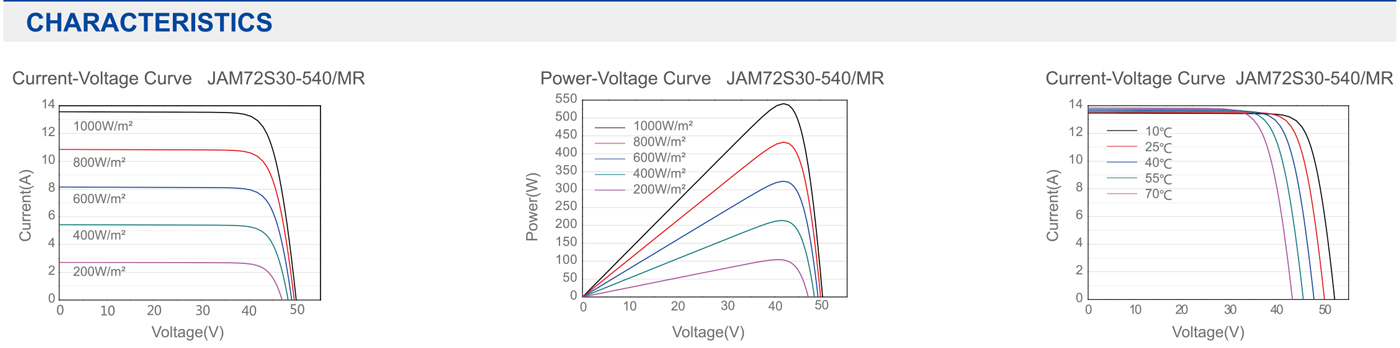

| ELECTRICAL PARAMETERS AT NOCT |
OPERATING CONDITIONS |
|||||||
| TYPE |
JAM72S30 -530/MR |
JAM72S30 J -535/M R |
AM72S30 -540/MR |
JAM72S30 -545/MR |
JAM72S30 -550/MR |
JAM72S30 -555/MR |
Maximum System Voltage | 1000V/1500V DC |
| Rated Max Power(Pmax) [W] |
401 |
405 | 408 |
412 |
416 |
420 |
Operating Temperature | -40C-+85C |
| Open Circuit Voltage(Voc) [V] |
46.18 |
46.31 | 46.43 |
46.55 |
46.68 |
46.85 | Maximum Series Fuse Rating | 25A |
| Max Power Voltage(Vmp) [V] |
38.57 |
38.78 | 38.99 |
39.20 |
39.43 |
39.66 | Maximum Static Load,Front* Maximum Static Load,Back* | 5400Pa(112lb/ft2)
2400Pa(50lb/ft2) |
| Short Circuit Current(lsc) [A] |
11.01 |
11.05 | 11.09 |
11.13 |
11.17 |
11.21 | NOCT | 45±2C |
| Max Power Current(lmp) [A] |
10.39 |
10.43 | 10.47 |
10.51 |
10.55 |
10.59 | Safety Class | Class II |
| NOCT | Irradiance 800W/m2, ambient temperature 20°C,wind speed 1m/s, AM1.5G | Fire Performance | UL Type 1 | |||||
| *For NexTracker installations, Maximum Static Load, Front is 1800Pa while Maximum Static Load, Back is 1800Pa. | ||||||||
