BJ48-240 51.2V/48V 240AH Lithium Ion Battery bank with Build-in new BMS

Short Description:

51.2V / 240AH / 12WKH

BMS can be replaced easily

Wall mounted with hidden cable port

Accurate display by LCD coulomb meter

Send email to us

Product Detail

Product Tags

New Design

BMS can be replaced easily
95% DOD High performance:Use 95% of battery capacity
Wall mounted with hidden cable port
Ａccurate display by LCD coulomb meter

Application Places

For areas without urban power, the lifepo4 battery pack can be charged by solar panels, working
with inverters, to provide 220V power supply for household use; for areas where urban power is
expensive, the lifepo4 battery pack can be charged by solar power or city power during the day,
and Electricity is supplied during times when electricity is expensive. The lifepo4 battery pack can
also be used as a UPS to avoid information loss and emergency power supply caused by sudden
power failure.Lifepo4 battery packs are suitable for commercial use, industrial and domestic
power supply, agricultural power needs, and more.

Advantages

Ultra-thin wall-mounted design, the bottom can bear weight, easy to install with a small crane.

All screw holes are built in, the appearance is stylish and simple, and all wiring parts can be

hidden in the bottom space.

Using lithium iron phosphate BYD brand new original lifepo4 battery pack, the cycle life is up

to 6000 times, and the life span is more than 12 years.

Dust-proof structure design, DC output, safe and reliable. The BMS compartment is easy to

replace.

Integrated dangerous goods standard packaging, safe and convenient transportation.

Battery Specification

Model: BJ48-240
Type of Cell: LiFePO4 (Square steel shell)
Rated voltage: 51.2V
Standard capacity: 240Ah
Charging voltage: 57.6V-60V
Cut-off: 2.5V single cell
Self-Discharge( 25℃): ＜3％/month
Depth of discharge: Up to 95％
Charge method ( CC/CV ): Operation： -20℃—70℃; Recommendation: 10℃—45℃
Warranty: 5years
Size : 1136*540*190mm
Float charge voltage/V
Weight: 134.6KG
Electrical Characteristics
: 55.2
Max. continue discharge current/A: 100
Max. continue chargecurrent/A:
Max. pulse discharge current/A: 150A 1Sec.
100
Operating conditions
Cycle life (+25℃ 0.2C 100%DOD): >6000 Cycles
Storage temperature: 0 to 30℃
Storage duration: 6 months at 25℃
Safety standard: UN38.3,IEC62619,CE

IP Degree: IP20

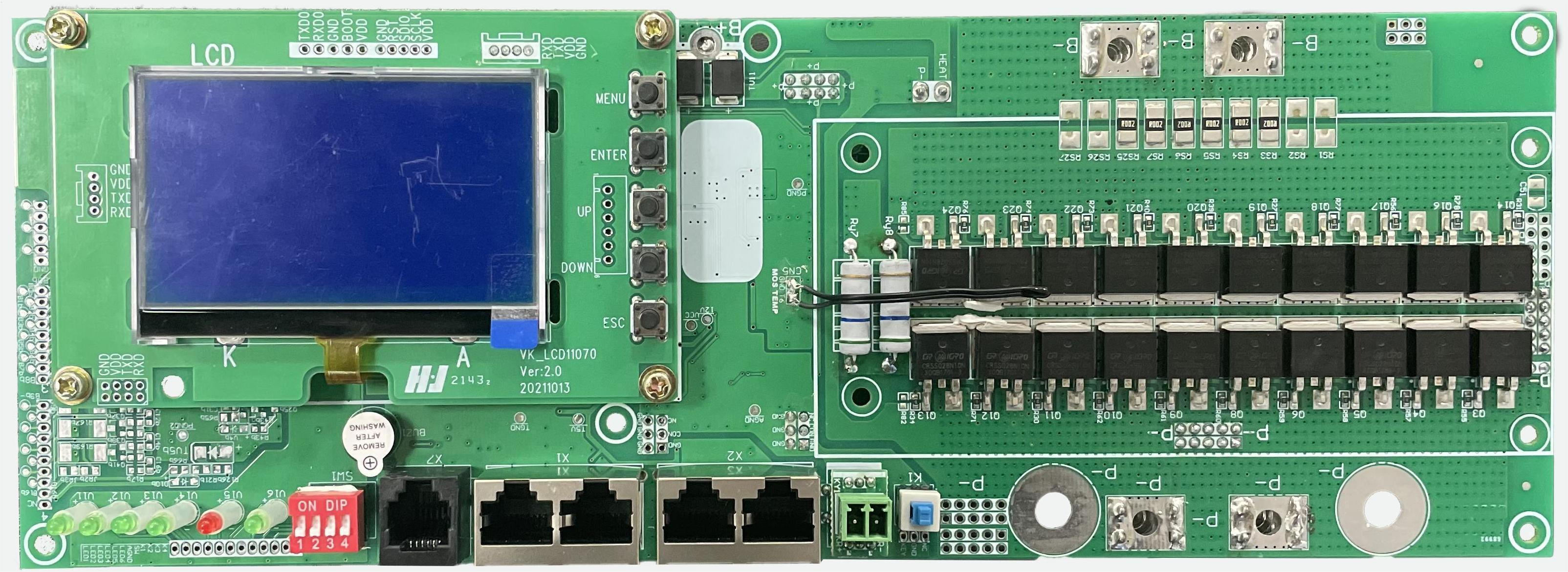

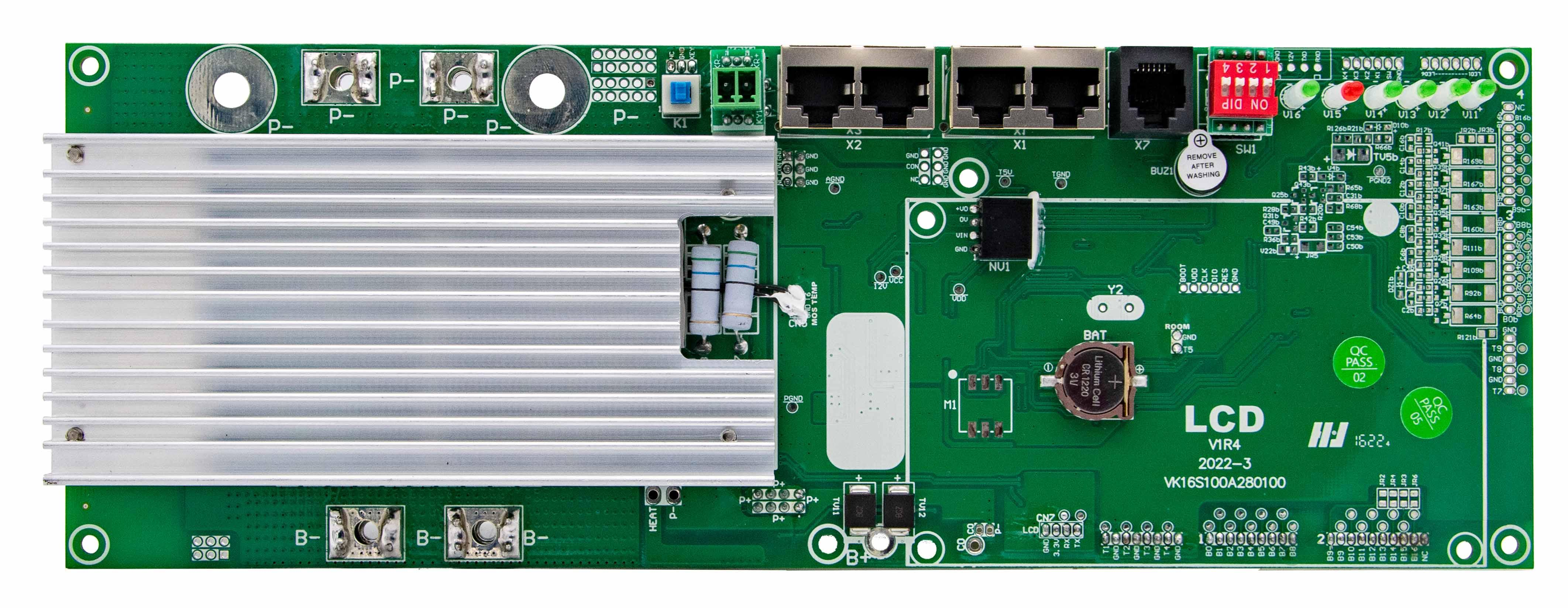

BMS

Various protection functions for charging and discharging.
Hardware discharge over – current, short – circuit protection function processing.
Reserve discharge control switch and discharge temperature protection position.
Very low static consumption current.
Smart : communication interface RS485, CAN.

Storage and Transportation

According to the characteristics of the cells, it is necessary to create a suitable environment for the transportation of lithium iron phosphate lifepo4 battery packs to protect the batteries. The battery should be stored in a dry, clean and well-ventilated warehouse at -20℃-45℃.
