Canadian Solar Panel BiHiKu HIGH POWER BIFACIAL POLY PERC MODULE 390 W ~ 415 W UP TO 30% MORE POWER FROM THE BACK SIDE CS3W-390 |395 |400 |405 |410 |415PB-AG Featured Image
  • Canadian Solar Panel BiHiKu HIGH POWER BIFACIAL POLY PERC MODULE 390 W ~ 415 W UP TO 30% MORE POWER FROM THE BACK SIDE CS3W-390 |395 |400 |405 |410 |415PB-AG
  • Canadian Solar Panel BiHiKu HIGH POWER BIFACIAL POLY PERC MODULE 390 W ~ 415 W UP TO 30% MORE POWER FROM THE BACK SIDE CS3W-390 |395 |400 |405 |410 |415PB-AG
  • Canadian Solar Panel BiHiKu HIGH POWER BIFACIAL POLY PERC MODULE 390 W ~ 415 W UP TO 30% MORE POWER FROM THE BACK SIDE CS3W-390 |395 |400 |405 |410 |415PB-AG

Canadian Solar Panel BiHiKu HIGH POWER BIFACIAL POLY PERC MODULE 390 W ~ 415 W UP TO 30% MORE POWER FROM THE BACK SIDE CS3W-390 |395 |400 |405 |410 |415PB-AG

Short Description:

MORE POWER

Up to 30% more power from the back side

24 % higher front side power than conventional modules

Low NMOT: 41 ± 3 °C
Low temperature coefficient (Pmax): -0.36 % / °C

Better shading tolerance


Product Detail

Product Tags

MORE RELIABLE

Lower internal current, lower hot spot temperature

Minimizes micro-crack impacts

Heavy snow load up to 5400 Pa, wind load up to 3600 Pa *

* For detailed information, please refer to Installation Manual.

Enhanced Product Warranty on Materials and Workmanship*

Linear Power Performance Warranty*

1st year power degradation no more than 2%

Subsequent annual power degradation no more than 0.45%

*According to the applicable Canadian Solar Limited Warranty Statement.

MANAGEMENT SYSTEM CERTIFICATES*

ISO 9001:2015 / Quality management system
ISO 14001:2015 / Standards for environmental management system
ISO 45001: 2018 / International standards for occupational health & safety

PRODUCT CERTIFICATES*

IEC 61215 / IEC 61730 / CE / MCS / INMETRO / UKCA
CEC listed (US California) / FSEC (US Florida)
UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68 Take-e-way

product-description3

* The specific certificates applicable to different module types and markets will vary, and therefore not all of the certifications listed herein will simultaneously apply to the products you order or use. Please contact your local Canadian Solar sales representative  to confirm the specific certificates available for your product and applicable in the regions in which the products will be used.

CSI Solar Co., Ltd. is committed to providing high quality solar       photovoltaic modules, solar energy and battery storage solutions   to customers. The company was recognized as the No. 1 module    supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey. Over the past 20 years, it has successfully delivered over 63 GW of premium-quality solar modules across the world.

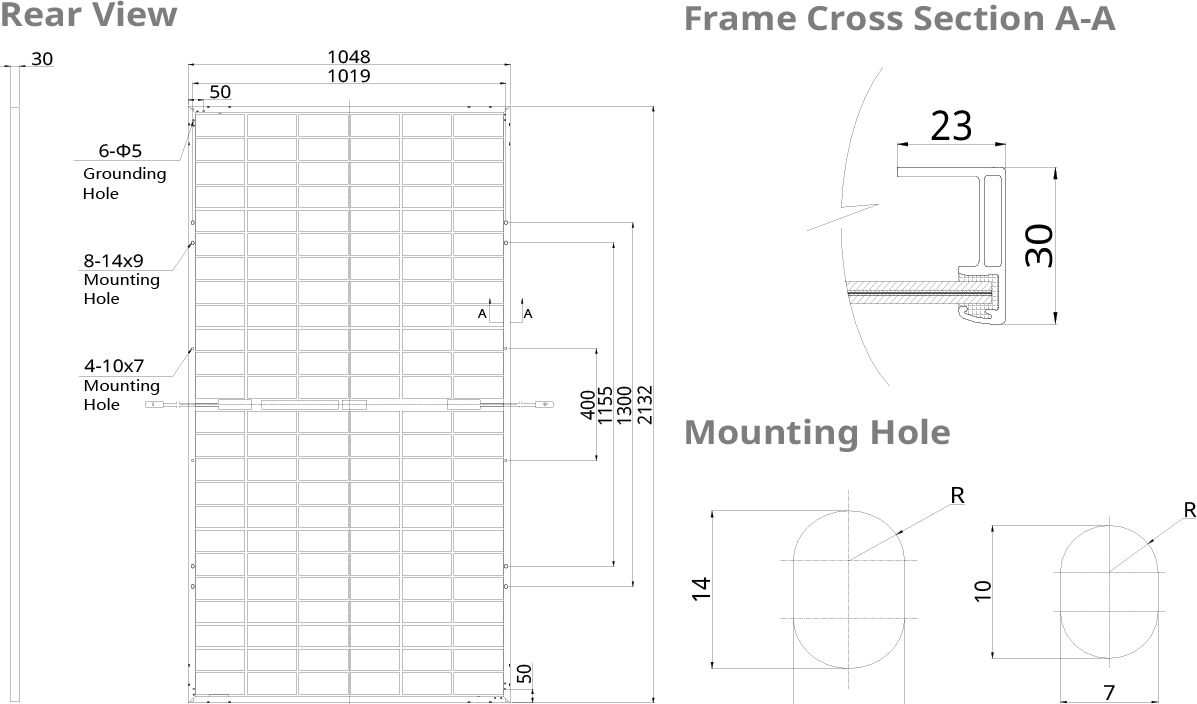

ENGINEERING DRAWING (mm)

product-description1

ELECTRICAL DATA | STC*

Nominal      Opt.           Opt.

Max.   Operating Operating Power    Voltage    Current  (Pmax)     (Vmp)        (Imp)

 Open

Circuit

Voltage

(Voc)

 Short

Circuit

Current

(Isc)

 Module

Efficiency
CS3W-390PB-AG 390 W 38.3 V 10.19 A 46.8 V 10.74 A 17.5%
5% Bifacial    10% Gain**     20% 30% 410 W 38.3 V 10.70 A 46.8 V 11.28 A 18.3%
429 W 38.3 V 11.21 A 46.8 V 11.81 A 19.2%
468 W 38.3 V 12.23 A 46.8 V 12.89 A 21.0%
507 W 38.3 V 13.25 A 46.8 V 13.96 A 22.7%
CS3W-395PB-AG 395 W 38.5 V 10.26 A 47.0 V 10.82 A 17.7%
5% Bifacial    10% Gain**     20% 30% 415 W 38.5 V 10.77 A 47.0 V 11.36 A 18.6%
435 W 38.5 V 11.29 A 47.0 V 11.90 A 19.5%
474 W 38.5 V 12.31 A 47.0 V 12.98 A 21.2%
514 W 38.5 V 13.34 A 47.0 V 14.07 A 23.0%
CS3W-400PB-AG 400 W 38.7 V 10.34 A 47.2 V 10.90 A 17.9%
5% Bifacial    10% Gain**     20% 30% 420 W 38.7 V 10.86 A 47.2 V 11.45 A 18.8%
440 W 38.7 V 11.37 A 47.2 V 11.99 A 19.7%
480 W 38.7 V 12.41 A 47.2 V 13.08 A 21.5%
520 W 38.7 V 13.44 A 47.2 V 14.17 A 23.3%
CS3W-405PB-AG 405 W 38.9 V 10.42 A 47.4 V 10.98 A 18.1%
5%

Bifacial    10%

Gain**    20%

30%

 425 W 38.9 V 10.94 A 47.4 V 11.53 A 19.0%
446 W 38.9 V 11.46 A 47.4 V 12.08 A 20.0%
486 W 38.9 V 12.50 A 47.4 V 13.18 A 21.8%
527 W 38.9 V 13.55 A 47.4 V 14.27 A 23.6%
CS3W-410PB-AG 410 W 39.1 V 10.49 A 47.6 V 11.06 A 18.4%
5% Bifacial    10% Gain**     20% 30% 431 W 39.1 V 11.01 A 47.6 V 11.61 A 19.3%
451 W 39.1 V 11.54 A 47.6 V 12.17 A 20.2%
492 W 39.1 V 12.59 A 47.6 V 13.27 A 22.0%
533 W 39.1 V 13.64 A 47.6 V 14.38 A 23.9%
CS3W-415PB-AG 415 W 39.3 V 10.56 A 47.8 V 11.14 A 18.6%
5% Bifacial    10% Gain**     20% 30% 436 W 39.3 V 11.09 A 47.8 V 11.70 A 19.5%
457 W 39.3 V 11.62 A 47.8 V 12.25 A 20.4%
498 W 39.3 V 12.67 A 47.8 V 13.37 A 22.3%
540 W 39.3 V 13.73 A 47.8 V 14.48 A 24.2%
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.

** Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on mounting (structure, height, tilt angle etc.) and albedo  of the ground.

ELECTRICAL DATA

Operating Temperature   -40°C ~ +85°C
Max. System Voltage         1500 V  (IEC/UL) or 1000 V (IEC/UL)
Module Fire Performance TYPE 29 (UL 61730)

or CLASS C (IEC61730)

Max. Series Fuse Rating   25 A
Application Classification Class A
Power Tolerance              0 ~ + 10 W
Power Bifaciality*            70 %

* Power Bifaciality = Pmaxrear / Pmaxfront, both Pmaxrear and Pmaxfront are tested under STC, Bifacia-   lity Tolerance: ± 5 %

* The specifications and key features contained in this datasheet may deviate slightly from our actual products due to the on-going innovation and product enhancement. CSI Solar Co., Ltd. reserves the right to make necessary adjustment to the information described herein at any time without further notice.
Please be kindly advised that PV modules should be handled and installed by qualified people who have professional skills and please carefully read the safety and installation instructions before using our PV modules.

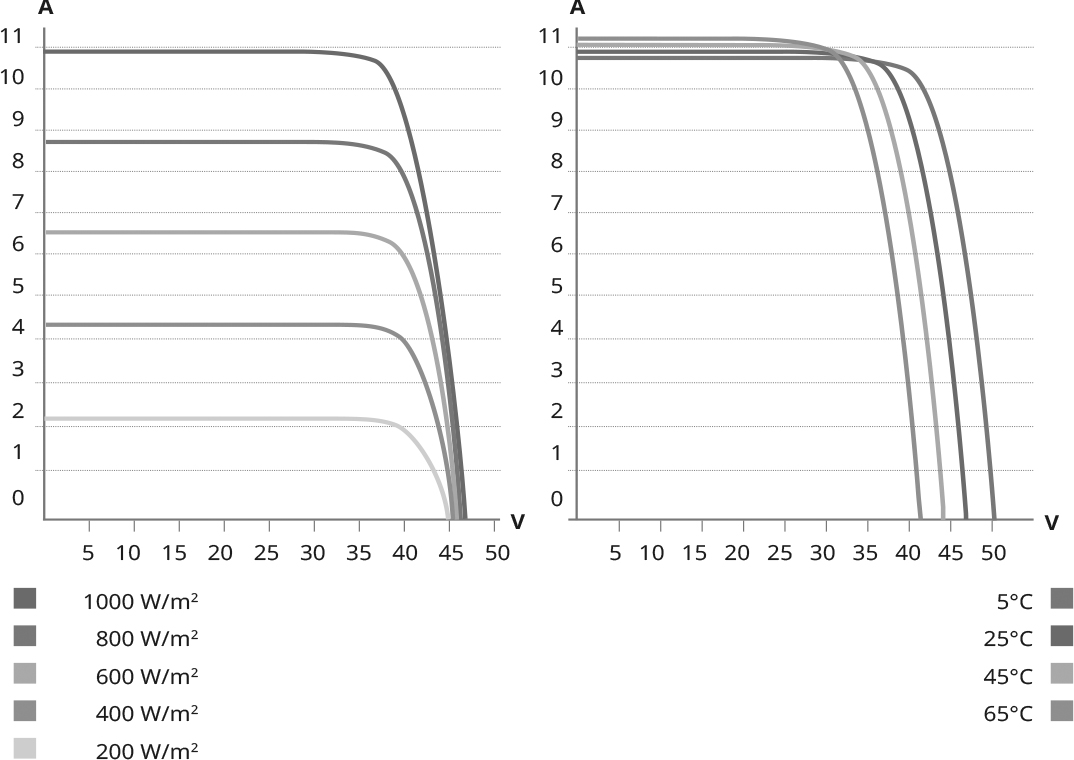

CS3W-400PB-AG / I-V CURVES

product-description2

ELECTRICAL DATA | NMOT*

Nominal      Opt.           Opt.        Open     Short

Max.    OperatingOperating Circuit   Circuit Power     Voltage    Current  Voltage Current (Pmax)      (Vmp)        (Imp)       (Voc)      (Isc)
CS3W-390PB-AG    292 W     35.8 V      8.15 A    44.1 V   8.66 A
CS3W-395PB-AG    295 W     36.0 V      8.21 A    44.3 V   8.72 A
CS3W-400PB-AG    299 W     36.2 V      8.27 A    44.5 V   8.79 A
CS3W-405PB-AG    303 W     36.3 V      8.33 A    44.7 V   8.85 A
CS3W-410PB-AG    307 W     36.5 V      8.39 A    44.8 V   8.92 A
CS3W-415PB-AG    310 W     36.7 V      8.45 A    45.0 V   8.98 A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

MECHANICAL DATA

Specification                 Data
Cell Type                    Poly-crystalline
Cell Arrangement        144 [2 X (12 X 6) ]
Dimensions                 2132 ˣ 1048 ˣ 30 mm (83.9 ˣ 41.3 ˣ 1.2 in)
Weight                        28.4 kg (62.6 lbs)
Front / Back Glass 2.0 mm heat strengthened glass with anti-reflective coating
Frame                         Anodized aluminium alloy
J-Box                            IP68, 3 bypass diodes
Cable                         4.0 mm² (IEC), 12 AWG (UL)
Cable Length (Inclu-    400 mm (15.7 in) (+) / 280 mm (11.0 in) (-)

ding Connector)             or customized length*
Connector                   T4 series or MC4-EVO2
Per Pallet                     33 pieces
Per Container (40' HQ)660 pieces or 627 pieces (only for US)

* For detailed information, please contact your local Canadian Solar sales and techni- cal representatives.

TEMPERATURE CHARACTERISTICS

Specification Data
Temperature Coefficient (Pmax) -0.36 % / °C
Temperature Coefficient (Voc) -0.28 % / °C
Temperature Coefficient (Isc) 0.05 % / °C
Nominal Module Operating Temperature 41 ± 3°C
