Canadian Solar Panel KuPower Mono PERC 200 W ~ 220 W CS5A-200 |205 |210 |215 |220M-PLUS

Short Description:

Perfect Size to Replace 5“ 72 Cell Module Excellent Electrical Compatibility

Module size 1595 x 801 mm
Perfect size to replace 5“ 72 cell module

Single module replacement possible

Minimize BoS cost for module replacement

Can be used to replace other brand 5“ 72 cell module


Product Detail

Product Tags

Enhanced Energy Yield and Product Reliability

Low power loss in cell connection

Better shading tolerance

Minimizes micro-crack impacts

Heavy snow load up to 5400 Pa, enhanced wind load up to 2400 Pa**

* For detailed information, please contact your local Canadian Solar sales and technical representatives.
** For detailed information, please refer to the Installation Manual.

Enhanced Product Warranty on Materials and Workmanship*

Linear Power Performance Warranty*

*According to the applicable Canadian Solar Limited Warranty Statement. For detailed information, please contact your local Canadian Solar sales and technical representatives.

MANAGEMENT SYSTEM CERTIFICATES*

ISO 9001:2015 / Quality management system
ISO 14001:2015 / Standards for environmental management system
ISO 45001: 2018 / International standards for occupational health & safety

PRODUCT CERTIFICATES*

IEC 61215 / IEC 61730 / CE
UL 61730 / IEC 61701 / IEC 62716
UNI 9177 Reaction to Fire: Class 1 / Take-e-way

48-pcs-mono-cell-210-~-230-W-1

* The specific certificates applicable to different module types and markets will vary, and therefore not all of the certifications listed herein will simultaneously apply to the products you order or use. Please contact your local Canadian Solar sales representative  to confirm the specific certificates available for your product and applicable in the regions in which the products will be used.

CSI Solar Co., Ltd. is committed to providing high quality solar products, solar system solutions and services to customers around the world. Canadian Solar was recognized as the No. 1 module supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey, and is a leading PV project developer and manufacturer of solar modules, with over 63 GW deployed around the world since 2001.

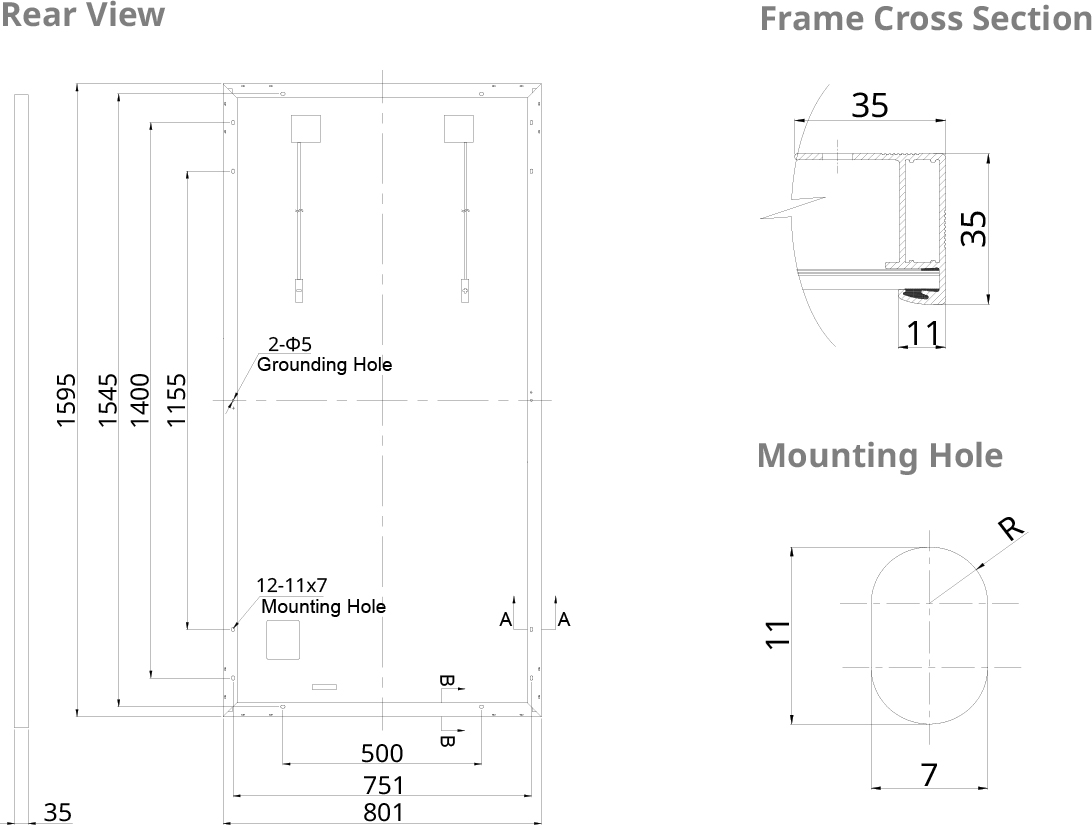

ENGINEERING DRAWING (mm)

product-description1

ELECTRICAL DATA | STC*

CS5A-200/205/210/215/220M-PLUS

Nominal Max. Power (Pmax) 200 W    205 W  210 W   215 W   220 W
Opt. Operating Voltage (Vmp) 37.9 V    38.1 V   38.3 V    38.5 V   38.7 V
Opt. Operating Current (Imp) 5.28 A    5.39 A   5.49 A    5.59 A   5.69 A
Open Circuit Voltage (Voc) 45.7 V    45.9 V  46.1 V    46.3 V   46.5 V
Short Circuit Current (Isc) 5.66 A    5.74 A   5.82 A    5.90 A   5.98 A
Module Efficiency 15.7%    16.1%   16.4%    16.8%    17.2%
Operating Temperature -40°C ~ +85°C
Max. System Voltage 1000V (IEC/UL) or 1500V (IEC/UL)
Module Fire Performance TYPE 1 (UL 61730 1500V) or TYPE 2       (UL61730 1000V) or Class C (IEC 61730)
Max. Series Fuse Rating 15 A
Application Classification Class A
Power Tolerance 0 ~ + 10 W
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.

ELECTRICAL DATA | NMOT*

CS5A-200/205/210/215/220M-PLUS

Nominal Max. Power (Pmax) 150 W 154 W 158 W 161 W 165 W
Opt. Operating Voltage (Vmp) 35.5 V 35.7 V 35.9 V 36.1 V 36.3 V
Opt. Operating Current (Imp) 4.22 A 4.31 A 4.39 A 4.47 A 4.55 A
Open Circuit Voltage (Voc) 43.2 V 43.4 V 43.6 V 43.8 V 44.0 V
Short Circuit Current (Isc) 4.56 A 4.63 A 4.69 A 4.76 A 4.82 A

* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.

* The specifications and key features contained in this datasheet may deviate slightly from our actual products due to the on-going innovation and product enhancement. CSI Solar Co., Ltd. reserves the right to make necessary adjustment to the information described herein at any time without further notice.
Please be kindly advised that PV modules should be handled and installed by qualified people who have professional skills and please carefully read the safety and installation instructions before using our PV modules.

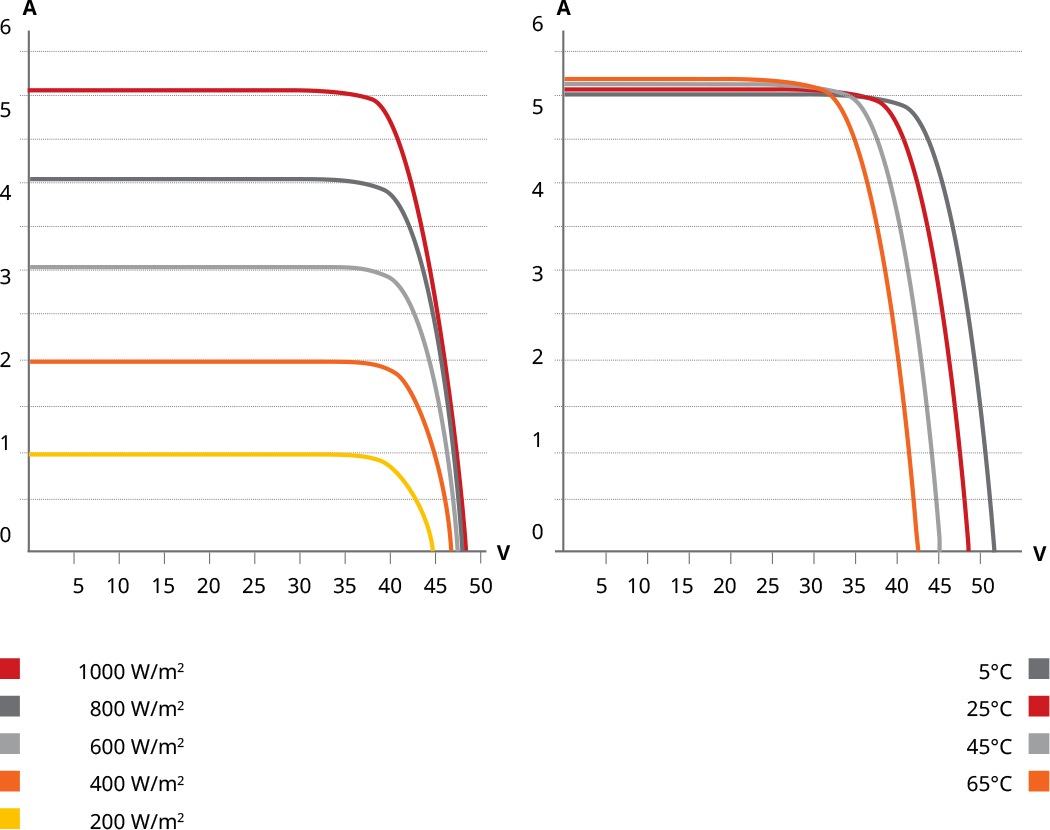

CS5A-200M-PLUS / I-V CURVES

product-description2

MECHANICAL DATA

Specification Data
Cell Type Mono-crystalline
Cell Arrangement 68 (17 X 4)
Dimensions 1595 x 801x 35 mm

(62.8 x 31.5 x 1.38 in)

Weight 15.25 kg (33 6 lbs)
Front Cover 3.2 mm tempered glass
Frame Anodized aluminium alloy
J-Box IP68, 4 bypass diodes
Cable 4.0 mm² (IEC), 12 AWG (UL), 1000 mm (39.4 in)
Cable Length                (Including Connector) Portrait: 400 mm (15.7 in) (+) / 280 mm       (11.0 in) (-) ; landscape: 1160 mm (45.7 in)*
Connector T4 series or MC4-EVO2
Per Pallet 30 pieces
Per Container (40' HQ) 840 pieces

* For detailed information, please contact your local Canadian Solar sales and technical representatives.

TEMPERATURE CHARACTERISTICS

Specification Data
Temperature Coefficient (Pmax) -0.34 % / °C
Temperature Coefficient (Voc) -0.26 % / °C
Temperature Coefficient (Isc) 0.05 % / °C
Nominal Module Operating Temperature 41 ± 3°C
